MVS SNK Arcade U2, U4 Digital Board LED 13PIN Wiring


Price:
Sale price$45

Description

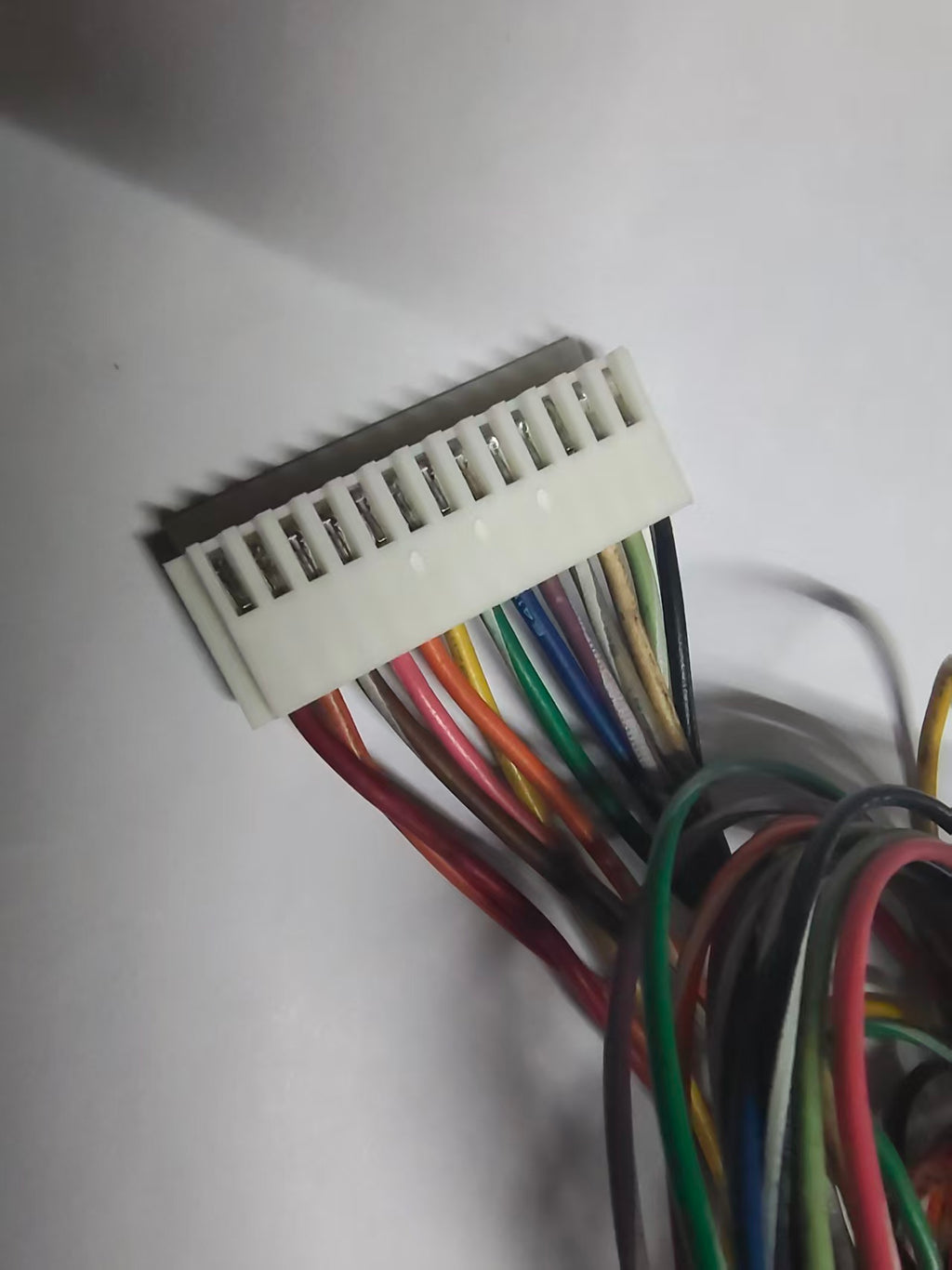

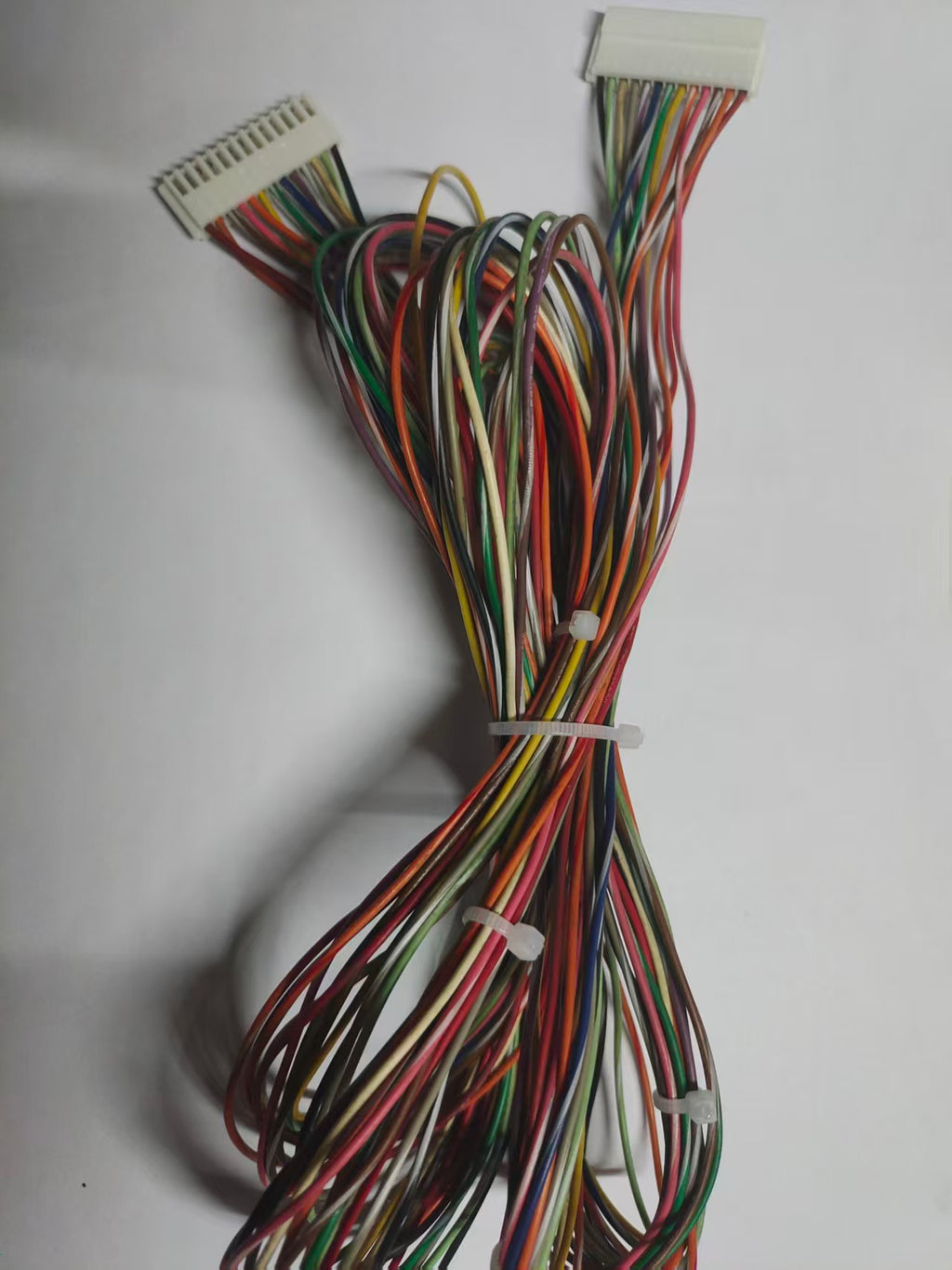

The SNK MVS U2 and U4 Digital Board utilizes a 13-pin JST connection, commonly used in these cabinets for daisy-chaining marquee LEDs, El-panel inverters, or the credit display board. The typical 1.8M (approx. 6ft) harness directly interfaces these boards to ensure proper voltage for lighting without rewiring

The U2/U4 LED or credit display board operates on a standardized pinout defined by SNK's hardware:
  • Pin 1: \(V_{CC}\) (Power, usually +12V)
  • Pin 2-5: Data / Segment Outputs
  • Pin 6-9: Signal / Data Inputs
  • Pin 10-12: Control Lines / Clock
  • Pin 13: GND (Ground)

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;


Item 20usd

Shipping fee 25usd for airmail

----------------------------------------------------------------------------------------------------About buying in large quantities and varieties combine shipping

Add each items will add 50% shipping fee
----------------------------------------------------------------------------------------------------
Because the web's system reason. the shipping fee can't auto calculate the discount. so if you need over one items and varieties . please use this web email system let me know. i will build a have shipping discount new order
Thanks
